5-ton gas-fired aluminum melting furnace and supporting production equipment

Equipment technical data: Single furnace rated capacity: 5 tons of aluminum; Maximum capacity of a single furnace: 5.5 tons of aluminum;

Rated melting efficiency: 1 ton of aluminum per hour; Natural gas energy consumption is 100 ± 10 cubic meters per ton of aluminum;

Melting furnace+combustion system footprint size: (length * width * height) 3.5 * 3 * 4.5 meters;

Single furnace natural gas parameters: workshop main pipeline dn40, 0.1-0.2MPA. Reserved port parameters near the equipment: adjustable from 5-15kpa, flow rate of 100 cubic meters per hour. Pipeline parameters, pipeline diameter: dn40mm. Pressure 0.1-0.2MPA, flow rate 500 cubic meters per hour, circulating water 10 cubic meters per hour per casting machine. 8 cubic meters of compressed air per hour.

Description of refractory materials for melting furnace: Furnace wall (refractory material thickness 400mm): insulation fiber board+refractory fiber blanket+insulation brick+anti-seepage pouring layer+refractory layer (high alumina brick); Furnace bottom (refractory material thickness 400mm): insulation fiber board+refractory fiber blanket+insulation brick+anti-seepage pouring layer+refractory layer (non stick aluminum pouring parts for the melt pool); Furnace top (low cement pouring material thickness 300mm): low cement pouring parts+insulation pouring parts);

Natural gas indicators: The natural gas usage pressure can be adjusted from 0-15kpa; Natural gas flow rate: 100 cubic meters per hour; Reserved pipe port DN40; The purchaser shall provide manual valves and natural gas pressure reducing valves on the main side of the natural gas pipeline;

Aluminum ingot casting machine dimensions: 22 * 2.1 * 2 meters; Rated casting efficiency of 5 tons/hour; Maximum casting speed of 7 tons/hour;

Aluminum ingot dimensions: 680 * 100 * 50mm; Single weight adjustable from 5-6.5kg; Pile size 680 * 680 * 1150mm;

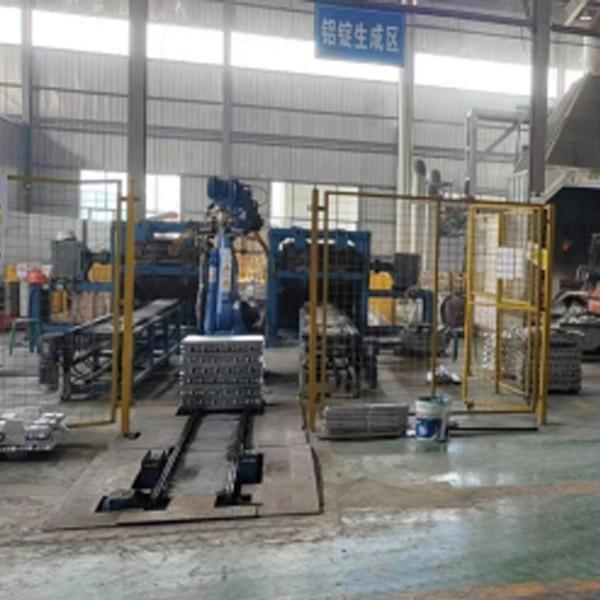

Dimensions of Stacking Machine: 5 * 7 meters

Ash processing machine size: 2.4 * 2.1 * 3.5 meters;
